1000BASE-BX-D BIDI SFP Transceiver

Name: 1000BASEBXD BIDI SFP Transceiver
Brand: GEZHI or OEM
Price: 1 USD

Brand Name : GEZHI or OEM

Model Number : GSB-1243-L1CD

Certification : CE/FCC/RoHS/TUV/UL

Place of Origin : China

MOQ : 1pcs

Price : Get Latest Price

Payment Terms : T/T, Paypal,Western Union

Supply Ability : 60,000pcs per month

Delivery Time : 1~3working days after payment

Packaging Details : 10 or 20pcs in Plastic tray

Product Name : LR SFP Module

Datarate : 1.25Gbps

Wavelength : Tx:1490nm/RX:1310nm

Distance : 10km

Connector : LC or SC

Application : Data BIDI communication

Contact Now

BIDI SFP Transceiver SC Connector

GEZHI WDM or BIDI small form-factor pluggable (SFP) is a compact optical transceiver, module used in optical communications for both telecommunication and data bidirectional communications applications. BIDI 1G optics are a small form factor pluggable module for Single Mode Fast Ethernet, Gigabit, Fiber Channel, SDH/SONET applications.

Features

Dual data-rate of 1.25Gbps/1.063Gbps operation
1490nm DFB laser and PIN photodetector for 10km transmission
Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
Digital Diagnostic Monitoring (DDM/DOM)
Internal Calibration or External Calibration
Compatible with SONET OC-24-LR-1 and RoHS
+3.3V single power supply
Operating case temperature range of 0°C to +70°C (Commercial)

Application

Gigabit Ethernet/Fast Ethenet
Fiber Channel
Router/Server interface
SDH/SONET/ATM
Switch to Switch interface
Other optical transmission systems

Specification:

P/N	GSB-1243-L2CD
Datarate	1.25Gbps
Wavelenght	Tx:1490nm/Rx:1310nm
Distance	10km
Transmitter	DFB
Receiver	PIN
DDM/DOM	Yes
Media	SMF
Operating Temperature	0°C to +70°C

Competitive Advantages

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. OEM/ODM Customized label
4. Keep stock,Fast delivery

Product Tags:

sfp optical transceivers

sfp transceiver modules

Wholesale 1000BASE-BX-D BIDI SFP Transceiver from china suppliers

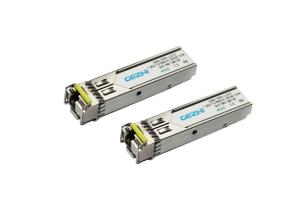

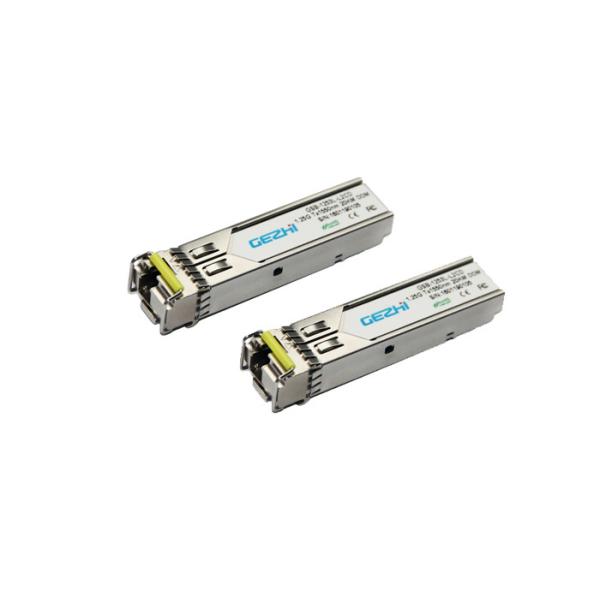

1000BASE-BX-D BIDI SFP Transceiver Images
